R290 Inverter Compressor Found to Reduce Energy Consumption of Vending Machines
An inverter propane (R290) compressor can reduce the energy consumption of vending machines by up to 27% compared to a fixed-speed compressor, according to research conducted by Embraco, a Brazilian manufacturer and brand of Nidec Global Appliance.
The inverter technology, also known as a variable-speed compressor, saves energy by adjusting the device’s operation speed to meet the requirements of the refrigeration equipment rather than running at a single speed regardless of demand.
The case study, which focused on the Asian market, was presented by Xu Bo, Sales Manager for Southeast Asia at Embraco.
According to Xu Bo’s presentation, the study was conducted to “evaluate alternative solutions to reduce the energy consumption for the vending machine and apply [a hydrocarbon] solution to comply with regional requirements.”

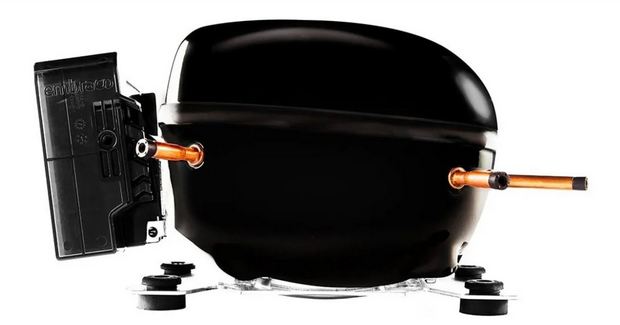

For the study, a 520-liter vending machine’s fixed-speed R134a-based compressor was replaced with a variable-speed R290-based compressor from Embraco’s VES series.
In addition to using an ultra-low-GWP natural refrigerant and reducing energy consumption from 6.93kWh per day to 5.07kWh per day, the inverter compressor also achieved the required internal cabinet temperature of less than 6°C (42.8°F) 15% faster than the fixed-speed model.
With these efficiency savings, the payback period for converting the vending machine to an inverter compressor is less than one year, according to the case study.
“It is an outstanding outcome not only from an environmental protection perspective but also from a financial one,” says Xu Bo. “It also guarantees an improved sales experience since the product reaches merchandising temperature quicker and can reduce product loss by allowing a more stable temperature inside the refrigerator, complying with the best practices of food safety regulations.”
The VES series inverter compressor also uses Embraco’s Smart Drop-in technology, an inverter control logic that allows the end user to customize the control routine to their specific parameters, optimizing the system performance and energy savings.
Additional energy savings
The case study also analyzed the impact of additional improvements on the vending machine’s energy consumption.
By optimizing the door heater and replacing AC evaporator and condenser fans with DC fans, energy consumption was reduced by a further 26% to 3.75kWh per day. Energy consumption could be reduced by an additional 1% by blocking the vending machine’s beverage outlet to reduce heat leakage.
In total, energy consumption could be reduced by 47%.
According to Embraco, the expanding vending machine market in China and Southeast Asia has required units to become more energy efficient to reduce operating costs and lower their environmental impacts.
Embraco’s R290-based variable-speed compressors have also been proved to reduce energy consumption and temperature variation in freezer units.
